Hexagon Double Galvanized Gabion Basket Preventing Rain Retaining Wall
Gabion Basket Product Description
Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Specification
| Gabion box (mesh size): 80*100mm 100*120mm | Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 |
| Gabion mattress (mesh size): 60*80mm | Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| special sizes Gabion are available | Mesh wire diameter | 2.0~4.0mm | superior quality,competitive price and considerate service |
| Edge wire diameter | 2.7~4.0mm |
| Tie wire diameter | 2.0~2.2mm |
| Material | galvanized wire, Zn-Al(Galfan) coated wire/ PVC coated wire |

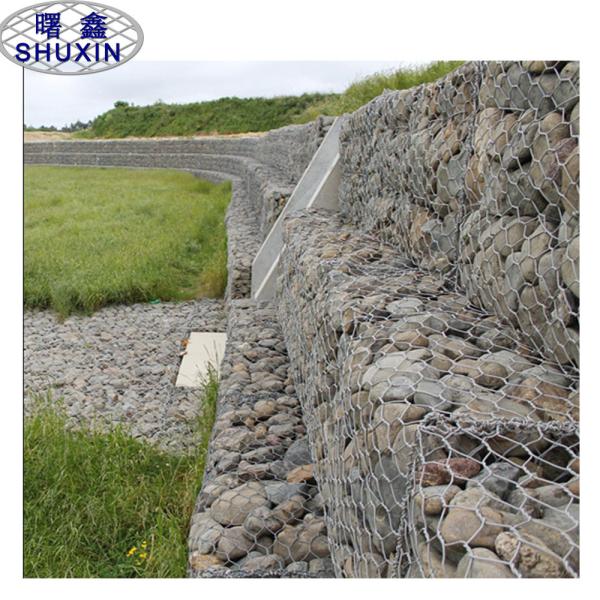

| Application | can be widely used in flood controlling,retaining wall,river bank protection, slope protection . |
| Hole shape | Hexagonal |
Gabion mesh/ gabion box material:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
(3) Coated galvanized steel wire: low carbon steel wire PVC coated.
(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,
(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested
Advantages
(1) Economy. Just put the stone into the cage and seal it.
(2) The construction is simple and does not need special technology.
(3) Strong ability to resist natural damage, corrosion and adverse weather effects.
(4) Can withstand large-scale deformation without collapsing.
(5) Silt between the cage stones is beneficial to plant production and can be fused with the surrounding natural environment.
(6) It has good permeability and can prevent damage caused by hydrostatic force. It is conducive to the stability of mountain slopes and beaches.
(7) Save transportation costs. It can be folded up for transportation and assembled on the construction site.
(8) Good flexibility: no structural joints, and the overall structure has ductility.
(9) Corrosion resistance: Galvanized materials are not afraid of seawater.
Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
Our Company
Anping Shuxin Wire Mesh Manufactory Co., Ltd, was established in 2013, is a professional manufacturer.
In recent years, our company has introduced a series of advanced equipment including welded wire mesh machine,Cutting Machine,Bending machine,air pump,Punching machine. We have strong technical strength,scientific management and complete inspection means to guarantee iron wire products of high grade .We will with the most preferential price,best quality in the face of the customer.
